American type hose clamp 8mm is light weighted, low-profile, cheap price, suitable for retail and wholesale, it is the best choice for small hose. It is typically used in fuel injection control, fuel pipeline, vacuum hose and other space-restrained applications due to its small size, narrow steel band, and extremely low-profile. Slots can be found according the length of steel band.
| Product No. | AT01 |
|---|---|
| MOQ | Above 2000pcs each size |
| Productivity | 2000000pcs per month |
| Material | Galvanized steel and stainless steel |
| Width | 8mm |

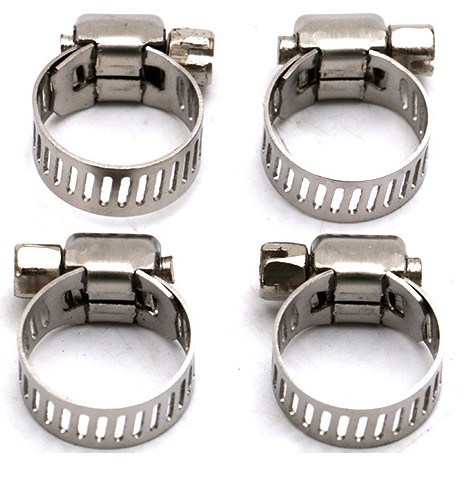

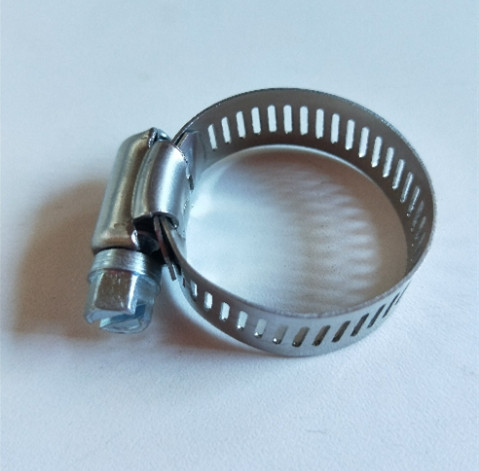

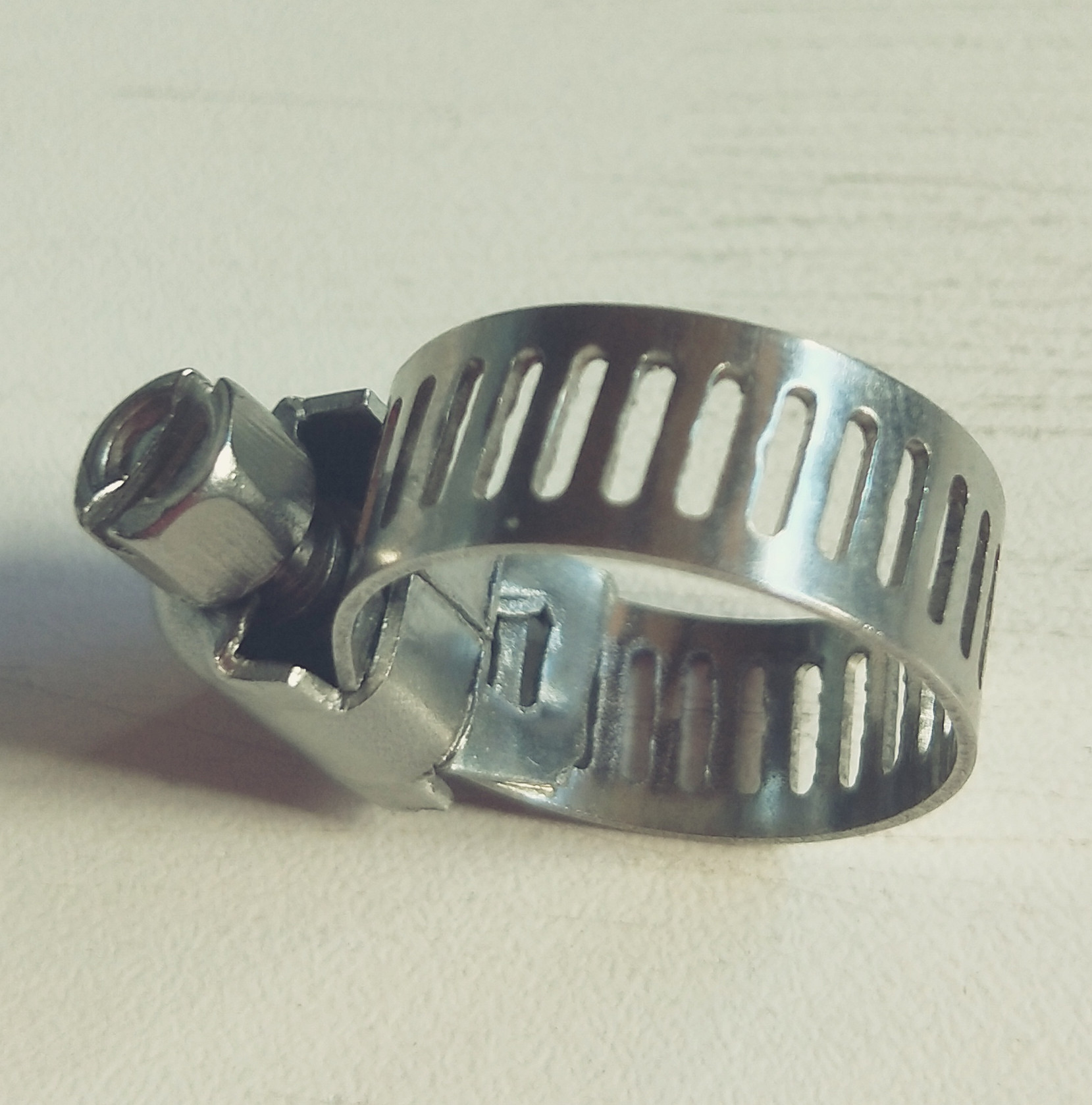

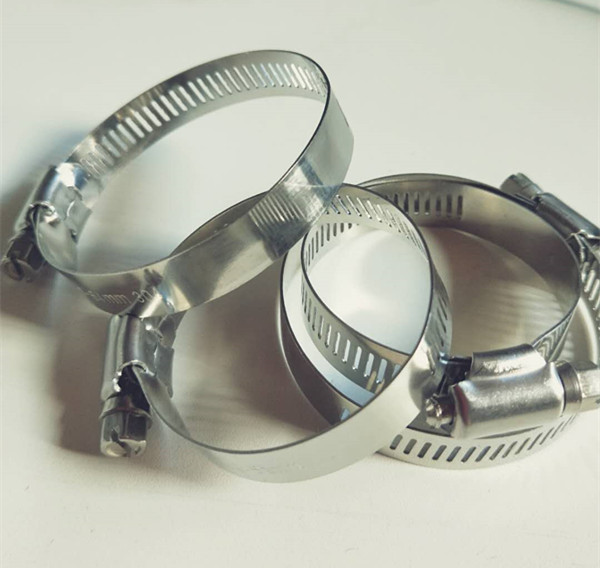

American type hose clamp 8mm
Material:
W1: Steel band-galvanized steel; Screw housing-galvanized steel; Screw-Galvanized steel.
W2: Steel band-SS200 or SS300 stainless steel; Screw housing- SS200 or SS300 stainless steel; Screw: Galvanized steel.
W4: Steel band-SS200 or SS300 stainless steel; Screw housing- SS200 or SS300 stainless steel; Screw: SS200 or SS300 stainless steel.
W5: Steel band-SS316 stainless steel; Screw housing- SS316 stainless steel; Screw-SS316 stainless steel.
| Size | Band width | Item No. | Pcs/bag | Pcs/CTN | Mounting Torque | |||
| mm | mm | W1 | W2 | W4 | W5 | |||
| 8-12 | 8.00 | AT01A8812 | BT01B8812 | DT01D8812 | ET01E8812 | 100 | 2500 | 2.5Nm |
| 10-16 | 8.00 | AT01A81016 | BT01B81016 | DT01D81016 | ET01E81016 | 100 | 2500 | 2.5Nm |
| 13-19 | 8.00 | AT01A81319 | BT01B81319 | DT01D81319 | ET01E81319 | 100 | 2500 | 2.5Nm |
| 14-22 | 8.00 | AT01A81422 | BT01B81422 | DT01D81422 | ET01E81422 | 100 | 1000 | 2.5Nm |
| 16-25 | 8.00 | AT01A81625 | BT01B81625 | DT01D81625 | ET01E81625 | 100 | 1000 | 2.5Nm |
| 19-29 | 8.00 | AT01A81929 | BT01B81929 | DT01D81929 | ET01E81929 | 100 | 1000 | 2.5Nm |
| 18-32 | 8.00 | AT01A81832 | BT01B81832 | DT01D81832 | ET01E81832 | 50 | 1000 | 2.5Nm |
