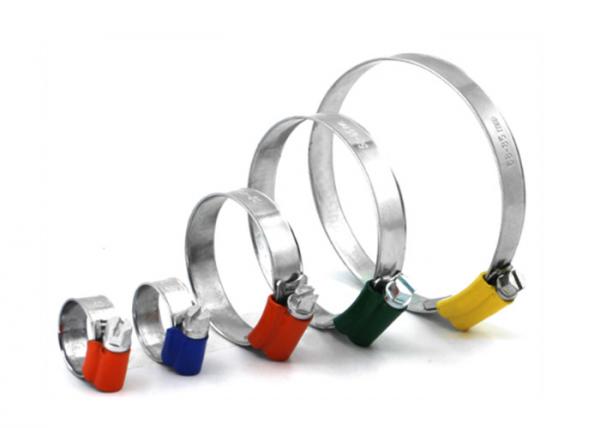

British type hose clamp is used in many areas, such as automotive industry, agriculture, pneumatic and hydraulic applications, hardware applications, construction and marine, oil and gas industry. British type hose clamp has a smooth internal surface with no slots and raised spots, so it cause no harm to the hose it contact. Screw band width include 9.7mm and 11.7mm.
| Product No. | BT01 |
|---|---|
| MOQ | Above 1000pcs each size |
| Productivity | 200000pcs per month |
| Material | Galvanized steel and stainless steel |
| Width | 9.7mm and 11.7mm |

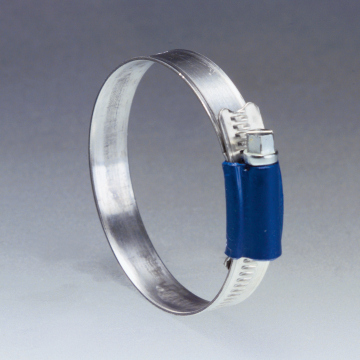

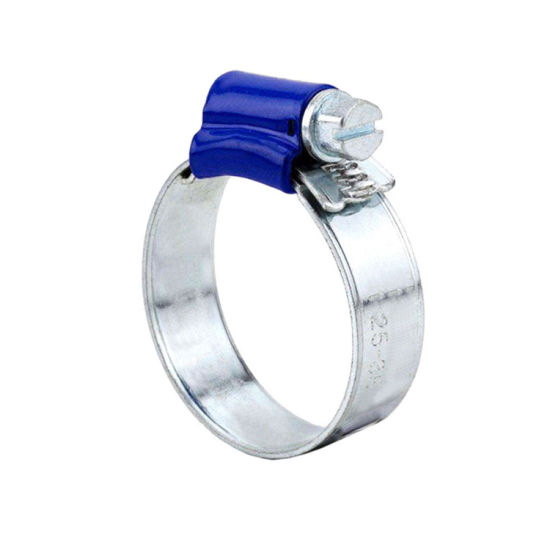

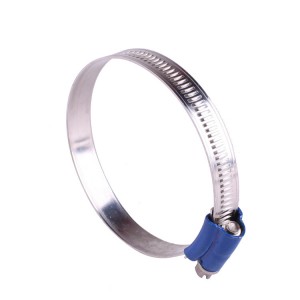

British type hose clamp with blue head
Material:
W1: Steel band-galvanized steel; Screw housing-galvanized steel; Screw-Galvanized steel.
W4: Steel band-SS200 or SS300 stainless steel; Screw housing- SS200 or SS300 stainless steel; Screw: SS200 or SS300 stainless steel.
W5: Steel band-SS316 stainless steel; Screw housing- SS316 stainless steel; Screw-SS316 stainless steel.
| Size | Band width | Item No. | Pcs/bag | Pcs/CTN | Mounting Torque | ||
| mm | mm | W1 | W4 | W5 | |||
| 8-14mm | 9.70 | BT01A9814 | BT01D9814 | BT01E9814 | 100 | 2000 | 3.0Nm |
| 11-17mm | 9.70 | BT01A91117 | BT01D91117 | BT01E91117 | 100 | 2000 | 3.0Nm |
| 13-20mm | 9.70 | BT01A91320 | BT01D91320 | BT01E91320 | 100 | 2000 | 3.0Nm |
| 15-24mm | 9.70 | BT01A91524 | BT01D91524 | BT01E91524 | 100 | 2000 | 3.0Nm |
| 19-28mm | 9.70 | BT01A91928 | BT01D91928 | BT01E91928 | 100 | 2000 | 3.0Nm |
| 22-32mm | 9.70 | BT01A92232 | BT01D92232 | BT01E92232 | 50 | 1000 | 3.0Nm |
| 26-38mm | 9.70 | BT01A92638 | BT01D92638 | BT01E92638 | 50 | 500 | 3.0Nm |
| 32-44mm | 9.70 | BT01A93244 | BT01D93244 | BT01E93244 | 50 | 500 | 3.0Nm |
| 38-50mm | 9.70 | BT01A93850 | BT01D93850 | BT01E93850 | 50 | 500 | 3.0Nm |
| 44-56mm | 9.70 | BT01A94456 | BT01D94456 | BT01E94456 | 25 | 500 | 3.0Nm |
| 50-65mm | 9.70 | BT01A95065 | BT01D95065 | BT01E95065 | 25 | 250 | 3.0Nm |
| 58-75mm | 9.70 | BT01A95875 | BT01D95875 | BT01E95875 | 25 | 250 | 3.0Nm |
| 68-85mm | 9.70 | BT01A96885 | BT01D96885 | BT01E96885 | 10 | 250 | 3.0Nm |
| 77-95mm | 9.70 | BT01A97795 | BT01D97795 | BT01E97795 | 10 | 250 | 3.0Nm |
| 15-24mm | 11.70 | BT01A121524 | BT01D121524 | BT01E121524 | 50 | 500 | 4.8Nm |
| 19-28mm | 11.70 | BT01A121928 | BT01D121928 | BT01E121928 | 50 | 500 | 4.8Nm |
| 22-32mm | 11.70 | BT01A122232 | BT01D122232 | BT01E122232 | 50 | 500 | 4.8Nm |
| 26-38mm | 11.70 | BT01A122638 | BT01D122638 | BT01E122638 | 50 | 500 | 4.8Nm |
| 32-44mm | 11.70 | BT01A123244 | BT01D123244 | BT01E123244 | 50 | 500 | 5.2Nm |
| 38-50mm | 11.70 | BT01A123850 | BT01D123850 | BT01E123850 | 50 | 500 | 5.2Nm |
| 44-56mm | 11.70 | BT01A124456 | BT01D124456 | BT01E124456 | 25 | 500 | 5.2Nm |
| 50-65mm | 11.70 | BT01A125065 | BT01D125065 | BT01E125065 | 25 | 500 | 5.2Nm |
| 58-75mm | 11.70 | BT01A125875 | BT01D125875 | BT01E125875 | 25 | 200 | 5.2Nm |
| 68-85mm | 11.70 | BT01A126885 | BT01D126885 | BT01E126885 | 25 | 200 | 5.2Nm |
| 77-95mm | 11.70 | BT01A127795 | BT01D127795 | BT01E127795 | 10 | 200 | 5.2Nm |
| 87-112mm | 11.70 | BT01A1287112 | BT01D1287112 | BT01E1287112 | 10 | 200 | 5.2Nm |
| 104-138mm | 11.70 | BT01A12104138 | BT01D12104138 | BT01E12104138 | 10 | 100 | 5.2Nm |
| 130-165mm | 11.70 | BT01A12130165 | BT01D12130165 | BT01E12130165 | 100 | 100 | 5.2Nm |
| 150-180mm | 11.70 | BT01A12150180 | BT01D12150180 | BT01E12150180 | 100 | 100 | 5.2Nm |
| 175-205mm | 11.70 | BT01A12175205 | BT01D12175205 | BT01E12175205 | 100 | 100 | 5.2Nm |
| 200-213mm | 11.70 | BT01A12200213 | BT01D12200213 | BT01E12200213 | 100 | 100 | 5.2Nm |
| 226-256mm | 11.70 | BT01A12226256 | BT01D12226256 | BT01E12226256 | 100 | 100 | 5.2Nm |
| 251-282mm | 11.70 | BT01A12251282 | BT01D12251282 | BT01E12251282 | 100 | 100 | 5.2Nm |
| 277-307mm | 11.70 | BT01A12227307 | BT01D12227307 | BT01E12227307 | 100 | 100 | 5.2Nm |
The data is only for reference, we can also making according to customer request.
